Tianjin Ejon Flying Science And Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | EJON |
| Certification : | CE, sgs |
| Supply Ability : | 1000 Set/Sets per Year |
| Price : | $5,000.00/sets 1-2 sets |

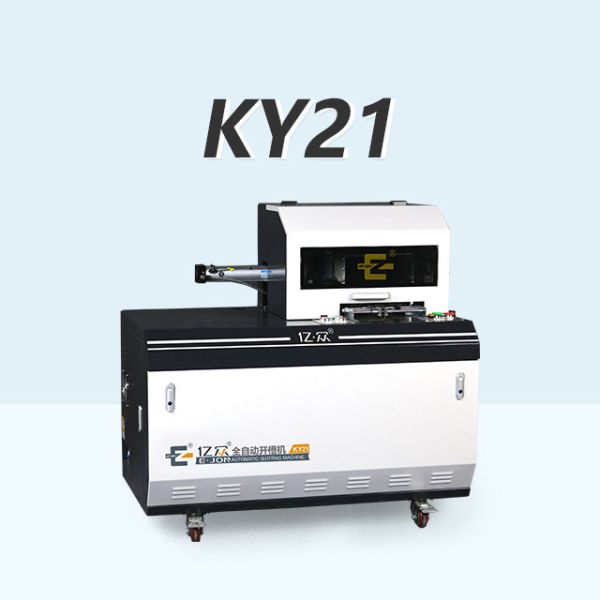

The representative of the automatic slotting machine, adopt grinder to slot, low cost, easy to maintain,the software is easy to operate and the processing file does not need to modify the node.in the process of real-time monitoring of grindering wear,and automatic slotting depth compensataion,guarantee the slotting depth,improve the processing efficiency and reduce materials waste.Machine compatible with all letter surface making methods, perfect combine with laser, plasma, engraving machine, and the finish products can reach the accurate standard.
Slotting method | Boshi angle grinder slotting |
Suitable material | Stainless steel,Galvanized plate,Aluminum plate,Acrylic |
Material Height | 10-600mm height |
Material Thickness | 0.4-2.0mm thickness |
Power | AC220V,50HZ,1.8KW |
File Format | Dxf.Plt.Ai |
The cutting knife driven by servo motor with high torque, with linear guide, promoted the cutting load, and make sure the incision is smooth level off.
Germany imported high hardness cutting knife, and is not easy to wear.
Low cost of slotting,Cooperate with "EJON" very thin grinding,every day, only 3 RMB.
To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.
The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.
The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 1410(L) * 790 (W) * 1130(D) | |
Weight | 200KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
|
|
